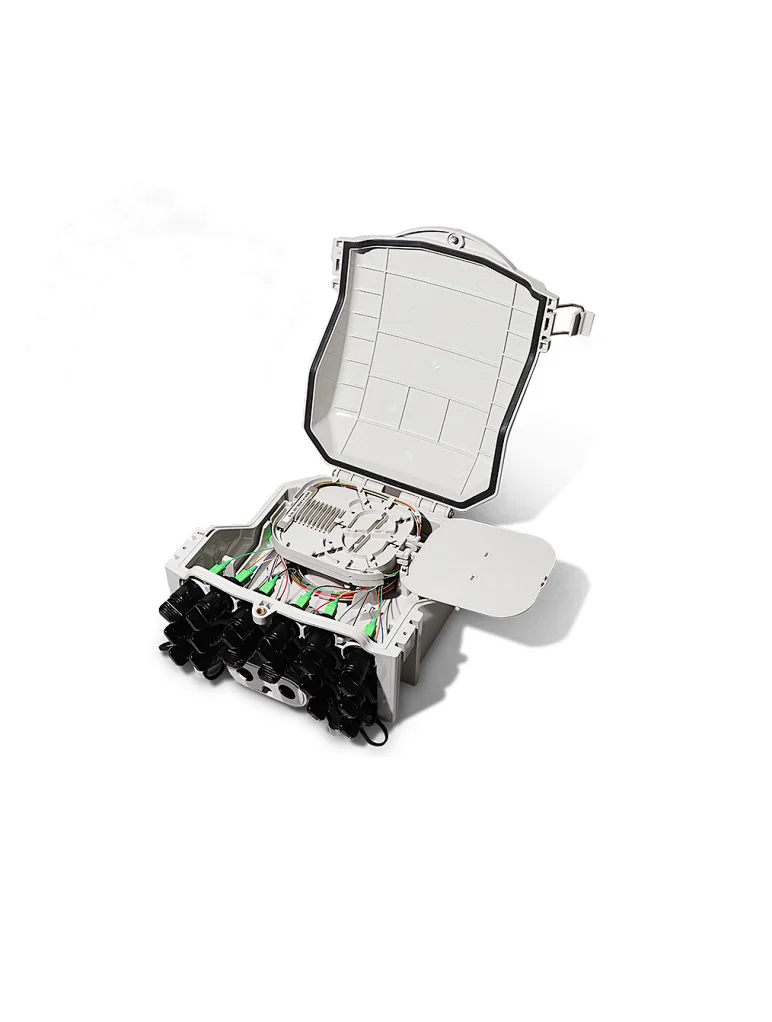

16C Terminal box

terminal box
16C Terminal box
16 cores
Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building
Quantity
2Features
    1. Total enclosed structure.
    2. Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65
    3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
    4. Cable,pigtails,andpatch cords are running through theirown paths without disturbing each other, micro type PLC splitter installation,easy maintenance.
    5. Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
    6. Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.
3Specification
1、Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
 Atmospheric pressure70KPa~106Kpa
2、Main technical datasheet
Insertion loss:≤0.15dB
UPC return loss:≥50dB
APC return loss:≥60dB
3、Thunder-proof technical datasheet
Theinsulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V(DC);IR≥2MΩ/500V
Thevoltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
4Configuration table
ModelDescriptionSize(Pic 1)
A*B*C(mm)
Max Capacity

Installation Size(Pic 2)Into the largest cable diameter(mm)
D*E*FG*H
16 coreSpllitterBox208*241*11716SC/APC)179*212*12621*5218
Table 1 Model and configuration
