Cabinet
Cabinet
Quantity

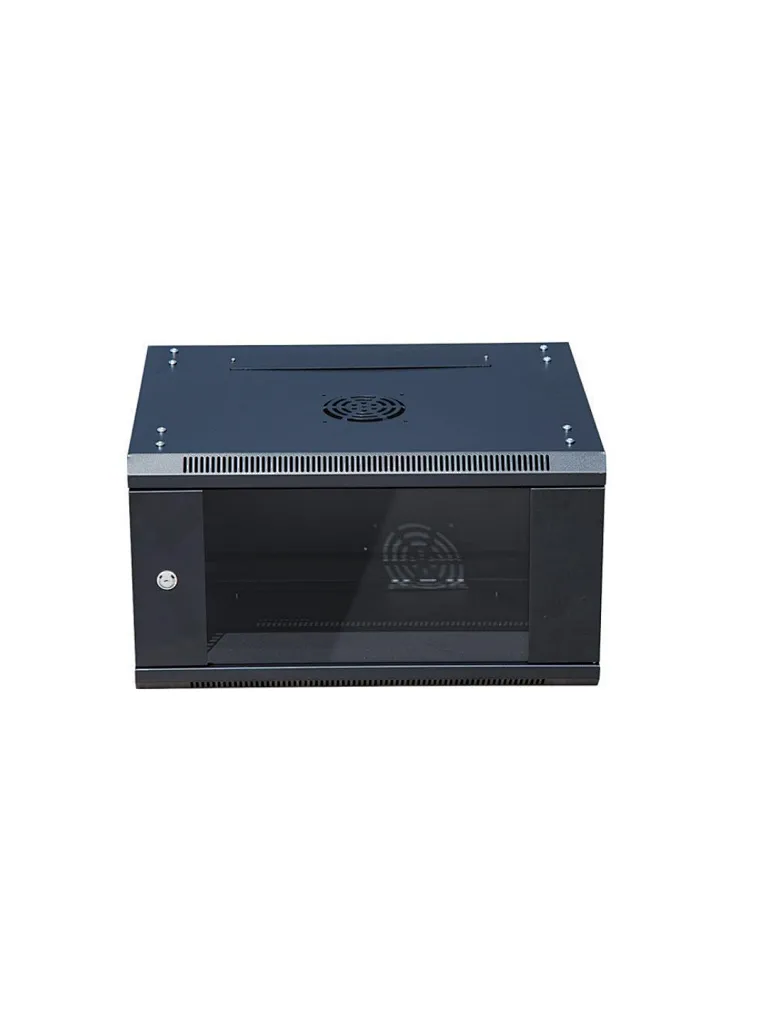

Product Description:
Steel frame with assistant profile unassembled structure;
Single section,compatible with 19” standard equipments;
5mm tempered glass front door with over 180 turning degree;
Cable entry on the top and bottom
L-shaped mounting profile,easy to adjustable on the mounting rail
Fan cutout on the top,easy to install fan;
Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option
Flat packing,save the container space,easy to transport

Product parameters :
Standard comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard;
Material:SPCC quality cold rolled steel;
Thickness: mounting profile:1.2mm;others:1.0mm;
Tempered glass;Thickness:4mm
Loading Capacity:Static loading: 60kg
Degree of protection:IP20
Surface finish:Degreasing,Pickling,Phosphating,Powder Coated

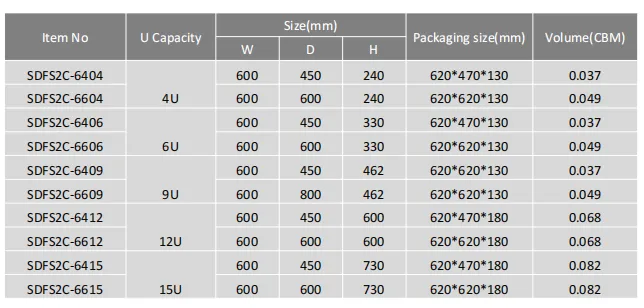

Product specification:4U-27U
Width:600mm
Depth:450mm,600mm
Body Color:RAL9004,RAL7035
