Fiber MST Fiber Optic Multiport Service
FTTX Enclosure
1
Quantity
FIBER OPTICAL MULTIPORT TERMINAL MOB 4 PORT WALL POLE PEDESTAL MOUNT WITH SST FLAT DIELECTRIC DROP CABLE
- High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
- Factory-sealed or field assembly.
- IP68 water and dust protection
- Strong enough: working under 1200N pulling force long term.

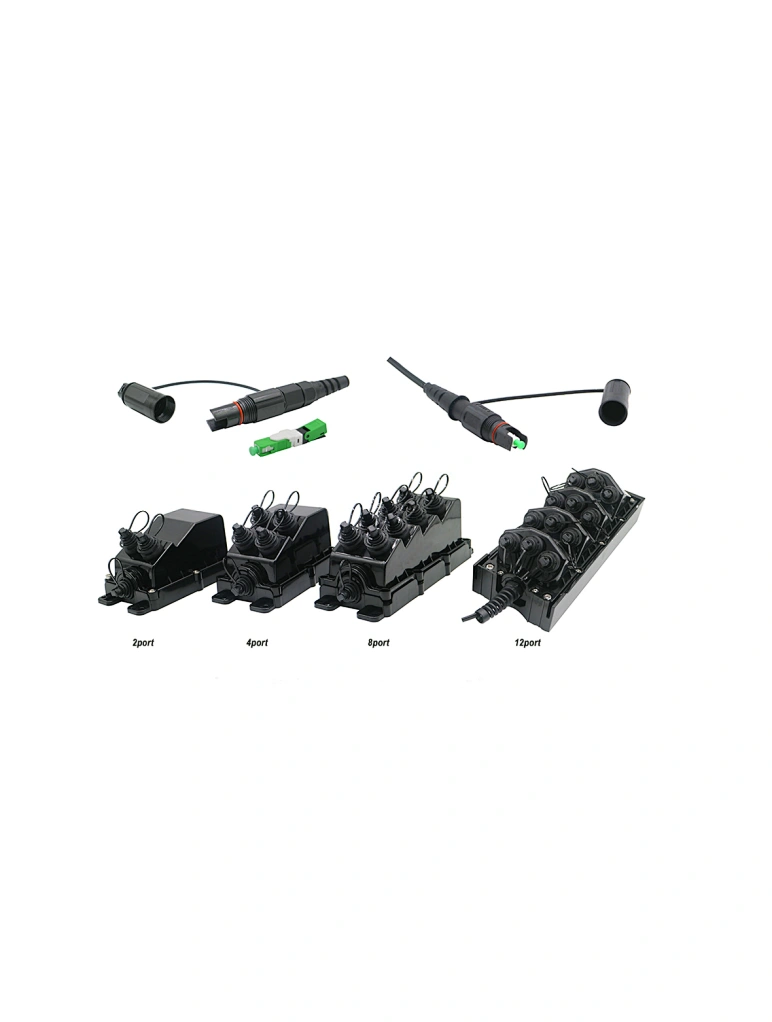

- From 2 to 12 ports for single or multifiber harsh connectors.
- IP68 waterproof rating.
- Wall-mounting, aerial installation or holding pole installation.
- Decreased angle surface and height make sure no connector interfering when operating.
- Meet IEC 61753-1 standard.
- Cost effective: save 40% operating time.
- Available with PLC or splice sleeve for fiber divide.

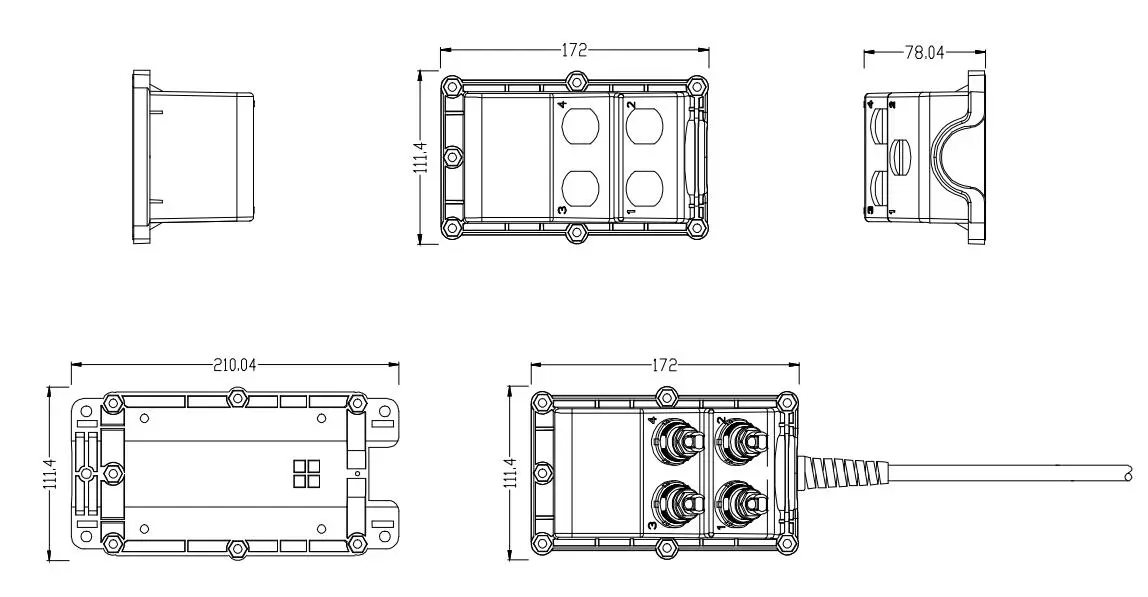

| Dimensions(LxWxH) | 210x105x93mm(4Core) 283x105x95mm(8Core) |
| Ingress Protection | IP68 |
| Working Temperature | -40~85℃ |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0mm to 14.0mm |
| Flat Cable Dimension | 4.6×8.9mm |
| Cable Jacket Material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL94-V0 |
| Number of PLC | 1~2pcs |
| Number of Fusion Protection Sleeves | 1~24pcs |
