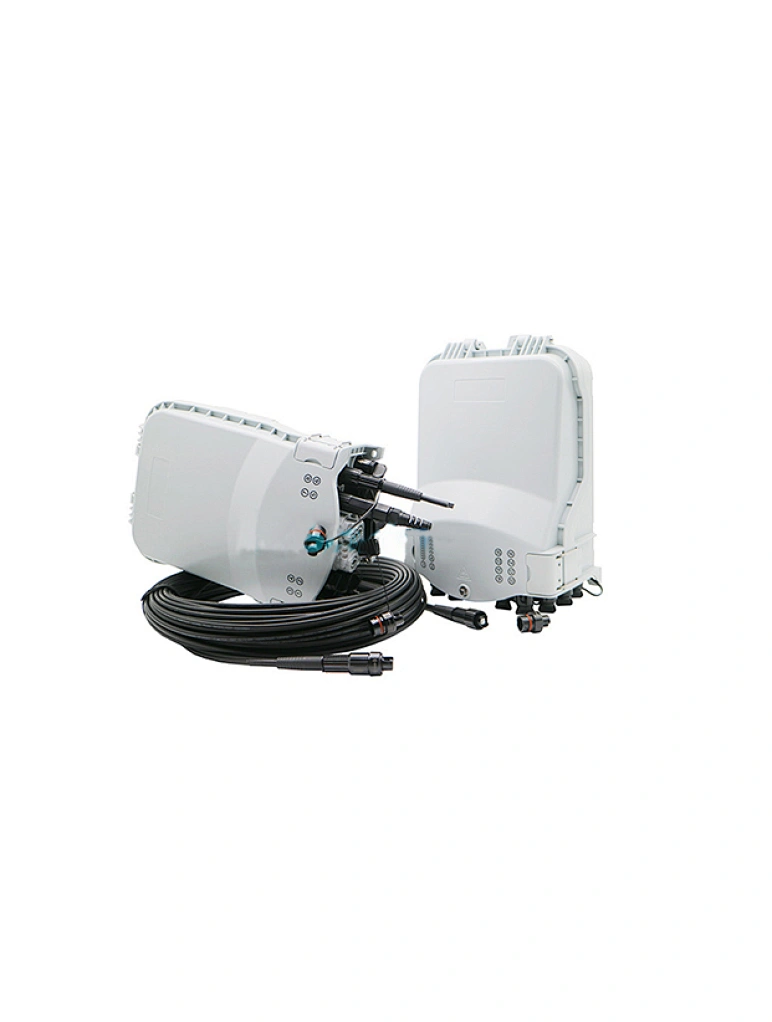

FTTA Splitter Distribution Boxes
16Port Fibra Optica Cajas Nap
Quantity
Features:
- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted, poled-mounted, Aerial Mounted, suitable for both indoor and outdoor use.
Material | PC+ABS | |
Dimension (Pic 1) A*B*C(mm) | 319*214*133mm | |
Max Capacity | 48fibers | |
Splice Tray | 4pcs (12fiber/tray) | |
Input cable diameter(mm) | Uncut 8-14mm | |
Branch hole cable diameter(mm) | 16mm | |
Color | Grey | |
Splitter | 2piece 1×8 Mini Splitter | |
Waterproof Adapter | 16pcs | |
Working temperature | -40℃~+85℃ | |
IP Rated | IP65 | |
Relative humidity | ≤85%(+30℃) | |
Atmospheric pressure | 70KPa~106Kpa | |
Installation Size(Pic 2) (mm) | D*E*F | 52*166*166 |
