GJYXFCH self-support Flat Drop Cable Reinforced with Steel Wire Strength Member

GJYXFCH self-support Flat Drop Cable Reinforced with Steel Wire Strength Member
GJYXFCH self-support Flat Drop Cable
Quantity

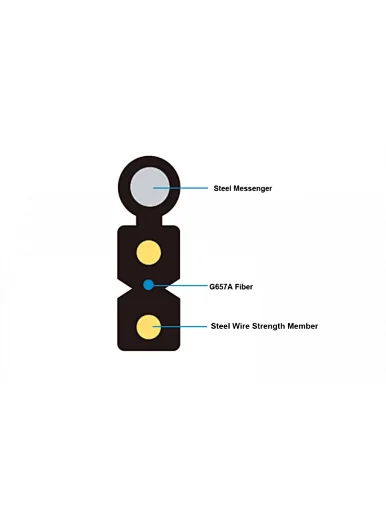

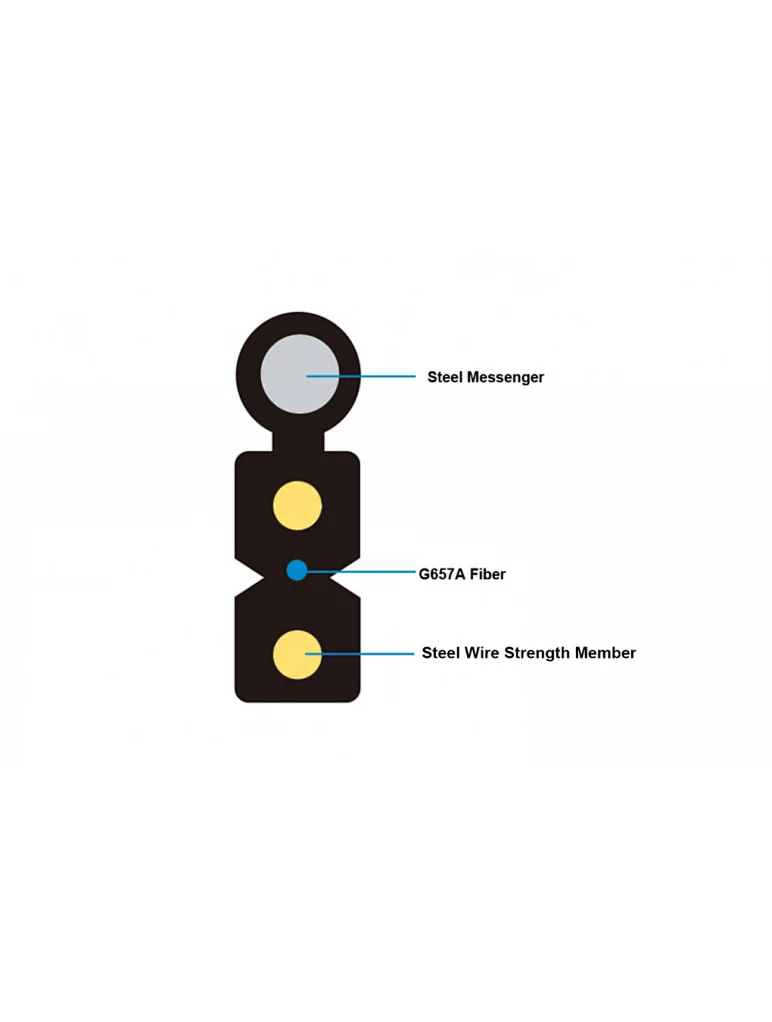

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.


Features:

Good mechanical and environmental characteristics;

Flame retardant characteristics meets the requirements of relevant standards;

The mechanical characteristics meets the requirements of relevant standards;

Soft, flexible, easy to splice, and with big capacity data transmission;

Meet various requirements of market and clients.



Item1fiber2fibers4fibers
Self-support Strength Member MaterialSteel WireSteel WireSteel Wire
Self-support Strength Member Diameter (mm)1.01.01.0
Strength Member MaterialSteel WireSteel WireSteel Wire
Strength Member Diameter (mm)0.40.40.4
Sheath Thickness(mm)≥0.40≥0.40≥0.40
Cable Diameter (mm)2.0*5.02.0*5.02.0*5.0
Cable Weight(kg/km)20.020.521.5
Operating Temperature Range()-50~+70-50~+70-50~+70
Tensile Strength Short/Long term (N/100mm)2000/8002000/8002000/800
Crush Resistance Short/Long term(N/100mm)2200/10002200/10002200/1000
Min. Bending Radius(mm)120120
Min.bending radius (mm)10/2530/60
