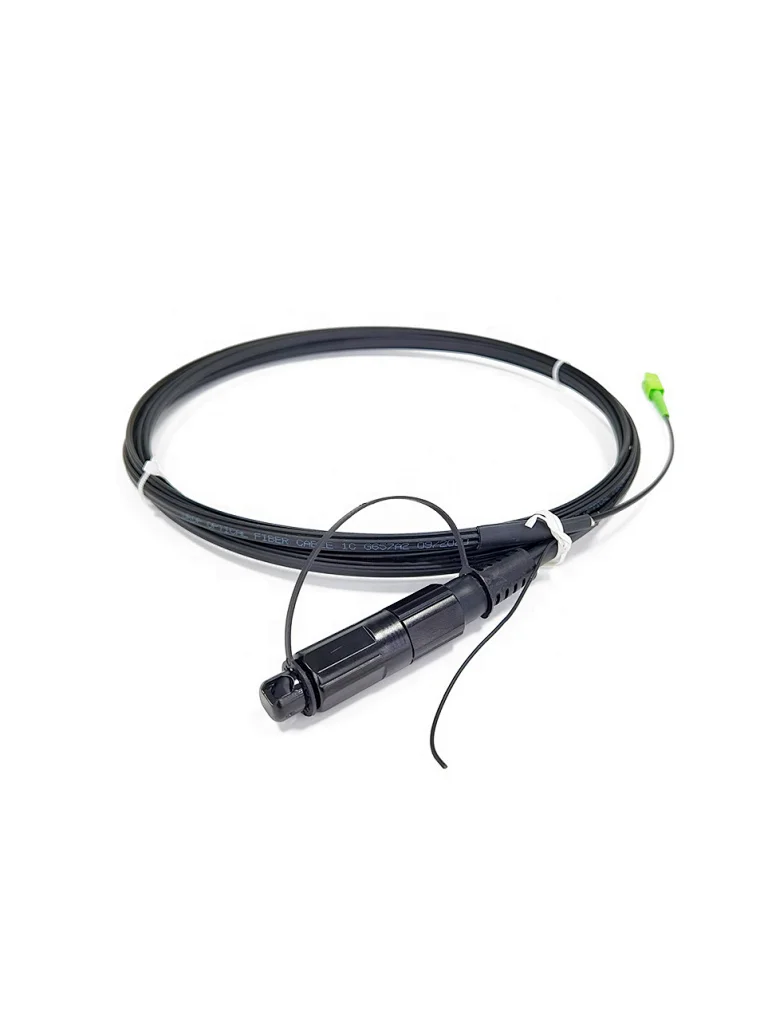

H Connector SC type Patch Cord
H Connector SC type
1
Compatible with Corning-OptiTap and H-Connector
Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized
Factory terminated for high performance
Available with one or both ends connectorized
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip
Available in dielectric or toneable
Designed for aerial, direct-buried or duct installation
IP-68 water and dust protection
-40℃~85℃ operating temperature
Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized
Factory terminated for high performance
Available with one or both ends connectorized
Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip
Available in dielectric or toneable
Designed for aerial, direct-buried or duct installation
IP-68 water and dust protection
-40℃~85℃ operating temperature
Quantity
Application:
- FTTH;
- Outdoor Areas
- Harsh Environment
| Product Name | Pre-connectorized Hardend SST Flat Dielectric Drop Cable Assemblies |

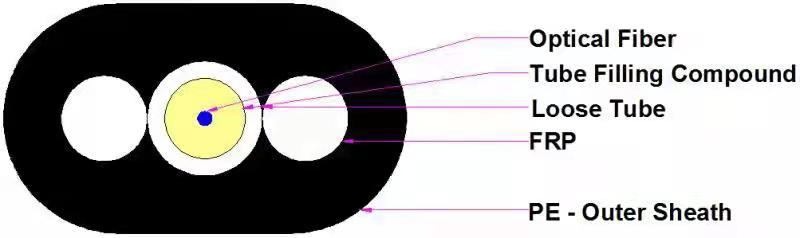

| Cable Type | SST Flat Dielectric Drop Cables |
| Cable Diameter | 4.5*8.1mm drop FTTH |
| Applications | Aerial,Direct Buried,Duct |
| Termination | Both end terminated or one end terminated |
| Specifications – Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap Compatible connector(H Connector) |
| Specifications – Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | Standard SC/APC Connectors |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G652D or G657A |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
