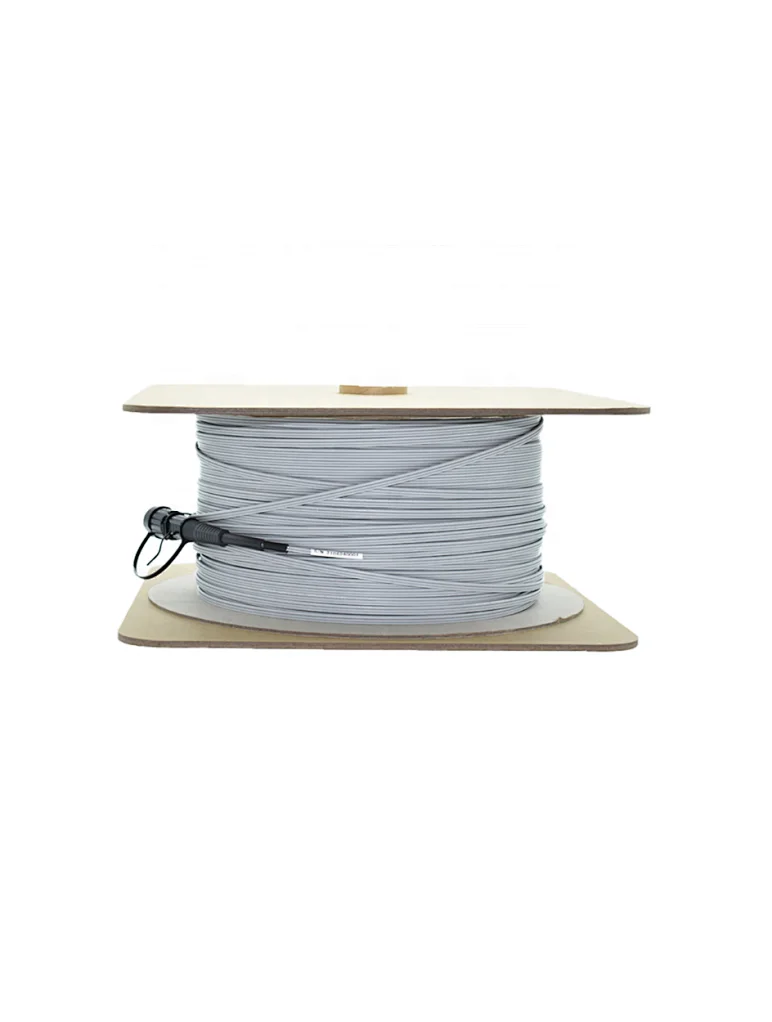

Outdoor Waterproof Mini Sc/Apc Optic Connector Fiber Optic Patch Cord
The Pre-Terminated optical drop cables connect new subscribers to the access network.They are easily pluggable into the optical termination boxes, in a way that there is no need to open the closure to activate new subscribers. The cable used is the low fricton Fig.8 with compact dimensions and have steel wire strength member in its composition, allowing the cable to be pushed through ducting pipes without the use of an installation guide.

Technical Data

ITEMTechnical Parameters
lnstallation Environmentlndoor/Outdoor
Operation EnvironmentAerial self-supported
Operation Temperature (℃)-25/+75°
Length50,100,150,220 and 300m
*Other lenghts may be supplied on request
Cable TypeCompact Low Friction Fig. 8 Drop Cable
Connector TypeSlimconnector
ColorGrey/Black
Fiber TypeSingle-mode Bending Loss lnsensitive,9/125um
Polishing TypeAPC
lnsertion Loss (dB)≤0.15 dB - Typical
≤0.30 dB - Maximum
Return Loss (dB)≥65dB
Fibers Quantity1 optical fiber
Cable Flammability RatingOptical cable with LSZH(Low Smoke Zero Halogen) flame retardant coating


Products Features

* Flexibility with ease of expansion without quality degradation;
* Ensures high performance and reliability in the management of optical cabling; * Fast and easy installation and reconfiguration; * Simple handling,no need for special tool; * Designed for 45 kg maximum pulling tension (cable retention) * Designed for external connection in Network Access Points * lP68


Application

* Preterminated Drop cable for Preterminated Drop Terminal Boxes
