Polish Type: UPC/APC
Ferrule Type: Grade A zirconia ceramic ferrule
Connector Color: blue/green/beige/auqa/violet/black/
Fiber Type: OS2/OM1/O2/OM3/OM4/OM5
Fiber Count: simplex/duplex/multi-core
Jacket Material: PVC/LSZH/PU/PE or customized
Jacket Color: blue/orange/green/brown/gray/white/red/black/yellow/purple/pink/aqua
Matching Cable Dia: 0.9mm/2.0mm/3.0mm/4.0mm
Operating Temperature: -20~ 70°c
Storage Temperture: -40~80°c
SINDA provides an extensive line of high performance fiber optic passive products. Using up-to-date technology, advanced manufacturing equipments, and strick quality control & management ensures long life and excellent quality of our products, deliver high stability under a range of application conditions for todays stringent optical networks. All the passive products comply with Telcordia GR-326-Core, TIA/EIA and IEC.
High quality, 100% Tested
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.
Digital end-face detector No-mandrel IL & RL tester Connector 3D tested
Sort of Optical Fibers
Fiber specifications list the core and cladding diameters as a ratio. Multimode fiber is commonly 62.5/125 or 50/125 micron, single mode fiber is commonly 9/125 micron.
Features
• 100% optically tested(Insertion loss)
• Perfect random mating performance
• Customer length
• Various connector type available
• Singlemode (OS2) and multimode (OM1, OM2, OM3, OM4, OM5) are available
• Environmental stable
High quality zirconia ceramic ferrule Features

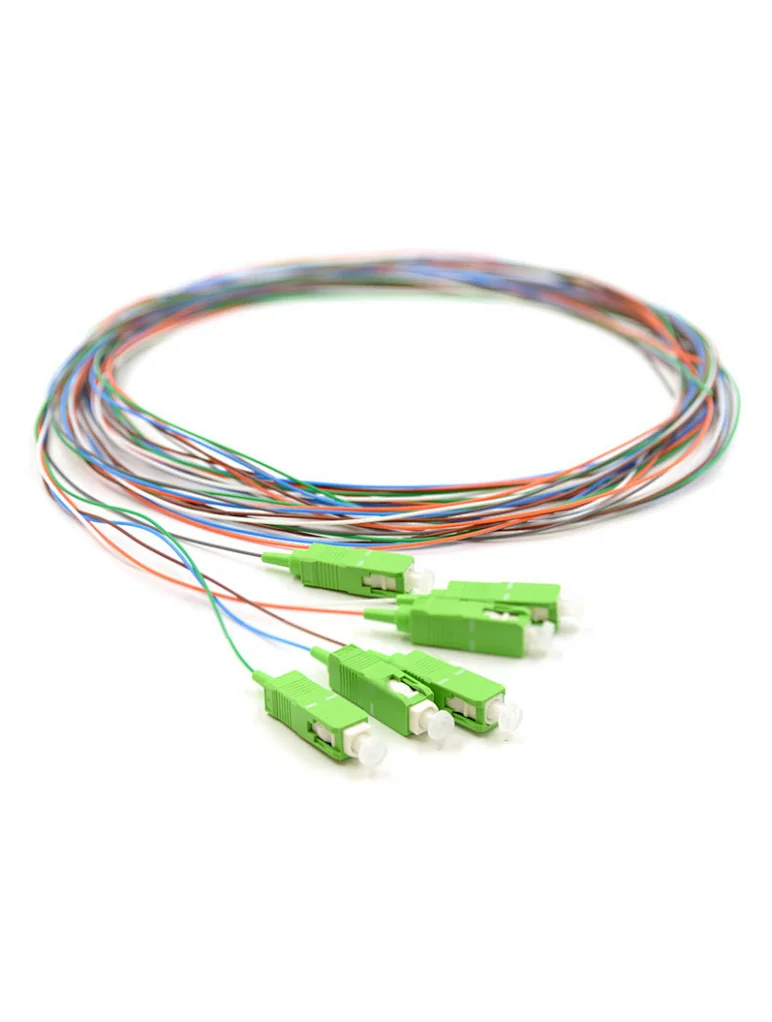

Patch cord&pigtails selected ceramic ferrule, professional grinding technology, so that the end face of the optical fiber can be precisely connected.Optimum IL and RL ensure stable signal transmission, protecting your network safety.
Applications
| ■ FTTH and FTTx ■ Active/Passive device ■ Telecommunication Networks ■ Analog/Digital Passive Optical Networks | ■ Data Processing Networks ■ Premise Installations ■ LAN, WAN and Metro Networks ■ Other applications in fiber optic systems | ■ Industrial, Medical & Military ■ CATV system ■ Active Device Termination ■ Fiber optic sensors |
Connector Specifications
| Optical Performance | Single Mode | Multi Mode | ||
| Insertion Loss | ≤0.20dB | ≤0.30dB | ||
| Return Loss | ≥50dB(UPC) | ≥30dB | ||
| ≥60dB(APC) | ||||
| Repeatability | ≤0.10dB | |||
| Durability | ≤0.2dB typical change,1000 matings | |||
| Core/Cladding size | 9/125μm | 50/125μm | 62.5/125μm | |
| Cable count | Simplex or Duplex | |||
| Jacket type | PVC or LSZH | |||
| Jacket Diameter | 900μm, 2mm or 3mm | |||
| Operating Temperature | - 20 ~ +75℃ | |||
| Storage Temperature | - 40 ~ +85℃ | |||
| Endface Geometry | ||||
| Parameter | 2.5μm ferrule | 1.25μm ferrule | ||
| UPC | APC | UPC | APC | |
| Radius of Curvature | 10～25mm | 5～12mm | 7～25mm | 5～12mm |
| Apex Offset | 0～50μm | 0～50μm | 0～50μm | 0～50μm |
| Fiber Height | -100～50nm | -100～100nm | -100～50nm | -100～100nm |
| Angle | -- | 7.7-8.3degree | -- | 7.7-8.3degree |
