12C /12F IP30 Caja NAP Fiber Optic Terminal Box

Can be installed in plain horizontal or vertical surface, or in a 19" or 23" rack;

Has ancourage structure of traction elements (aramid);

Allows installation of pigtails or PLC splitters (1x2, 1x4 e 1x8);

Chat Now

Description

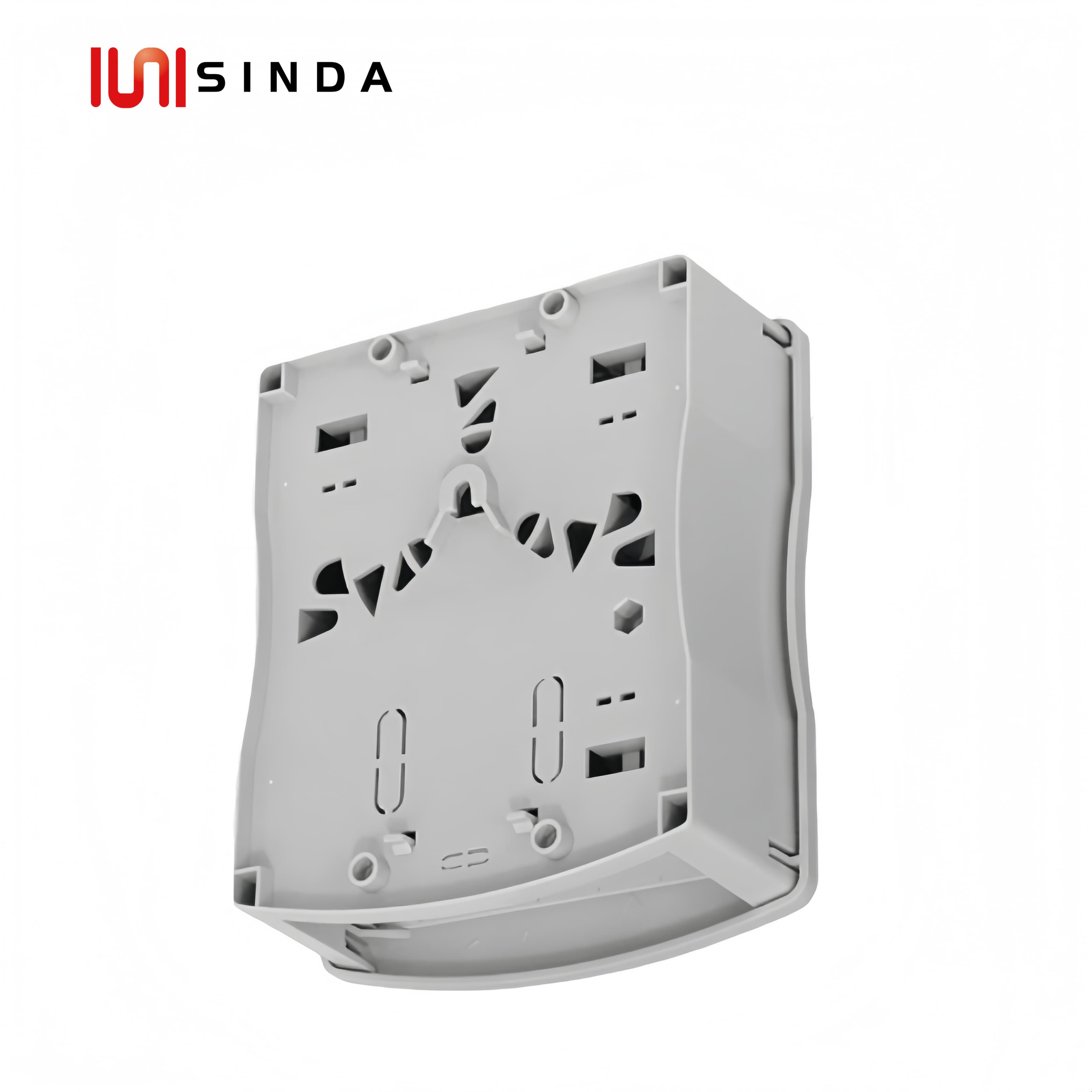

12C /12F IP30 Caja NAP Fiber Optic Terminal Box

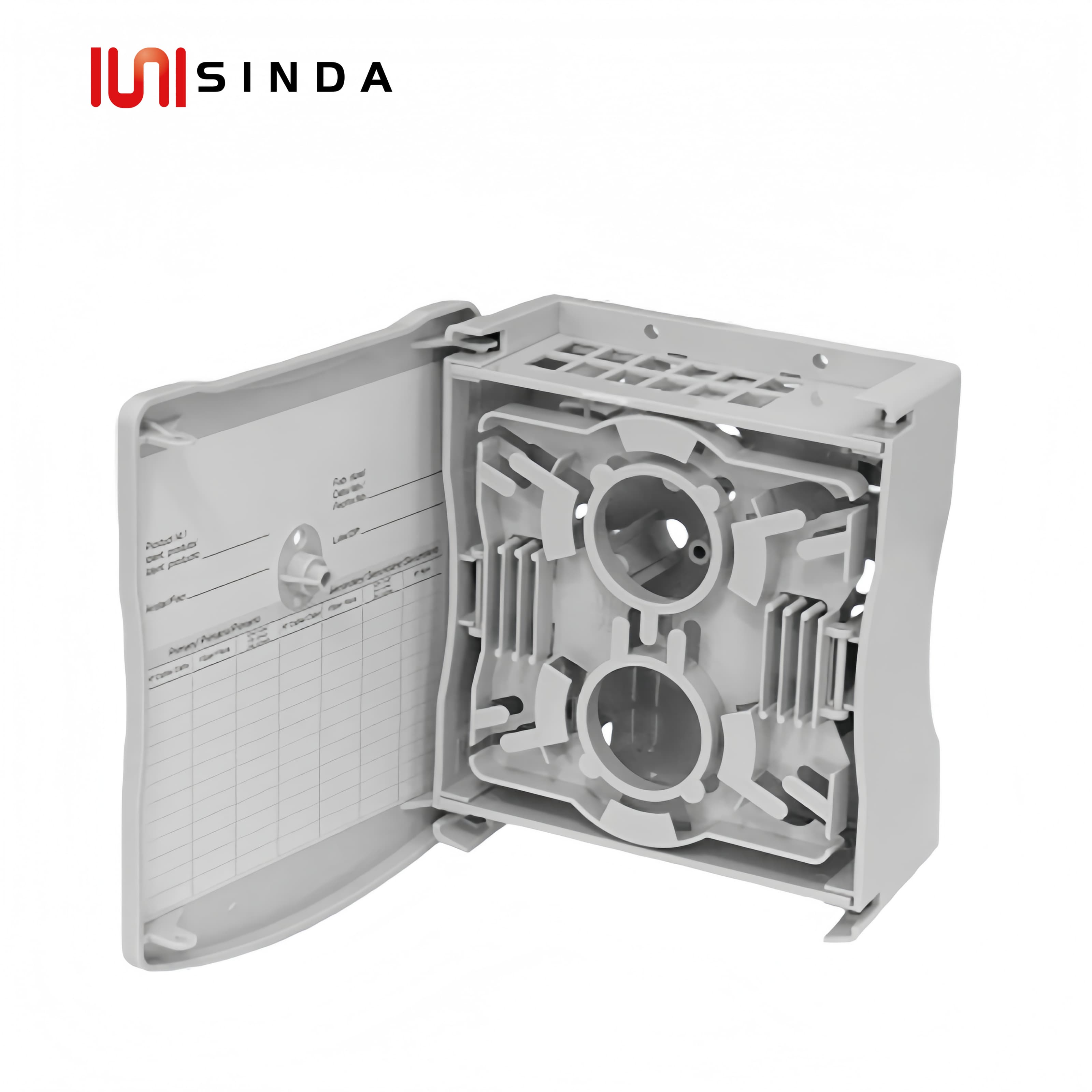

The Slimbox 12 Fiber Distribution Module present as main characteristics: Ability to perform the termination of optical cables using field connectorizarion ir fusion; Accommodate up to 12 fusion splices on an articulated optical tray and allows fibers inversion, providing greater flexibility to the product; It has the following access options: Adapters card up to 12 SC, MT-RJ or LC-duplex. Adapters card up to 12 ST or FC. Blank cards to use the product as optical block, without adapters

Future

• Fiber Entry Terminal (FET) made of high-impact thermoplastic material

• Preloaded with rotating slack storage reel storing 50, 100, or 150 ft of micro armored pushable fiber with bullet end

• Decreased deployment times and reduced installation costs by eliminating in-field splicing

• Cover closes securely with 3/8” hex bolt with provision for a security seal

• Up to 1-inch Conduit entry point with tie down

• Variable cable entry clamp designed for round or flat drop cable

• Electrical copper ground lug is built into the housing

Specifications

Installation Environment	Indoor
Operation Environment	Indoor
Operation Temperature (ºC)	-25 to 75°C
Height (mm)	155
Width (mm)	130
Depth (mm)	53
Color	Gray.
Cable Type	Tight buffer, loose tube, micro module.
Output cable diameter (mm)	12 optical cable with diamenter: 3x2mm or 2x1,6mm or 3mm.
Fiber Type	Single mode;Multimode.
Connector Type	SC，LC,FC,ST
Main Product Material	PC+ABS, thermoplastic material
Protection Index	IP30
Impact protection	IK05
Splicing support	Height: 3 to 6,5 mm; Width: 3 to 3,8 mm; Depth: 40 mm;
Identification	Indoor identification for management of fibers.
Adapters Quantity	12 (maximum quantity)
Splice Trays Quantity	1
Splice Capacity	12

Application

It is used as a termination point for optical fibers at floor of building in indoor environment.

*Can be assemble on DIN rail if the base for DIN rail will be acquired separately.
