FRB Series Fiber Rossette - 12 Cores

FRB Series Fiber Rossette - 12 Cores

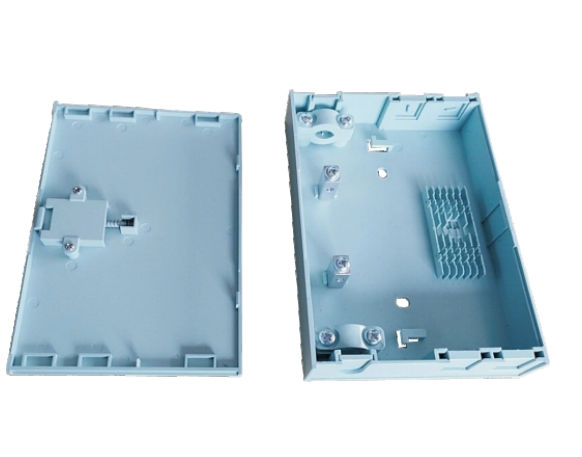

FRB Series Fiber Rossette - 12 Cores, This box is designed specially for FTTx Application,which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute.

Chat Now

Description

FRB Series Fiber Rossette - 12 Cores

This box is designed specially for FTTx Application,which suits for jointing fibers pigtail and it protects fiber optic splices and helps to distribute.

Feature

· Light weight, small size ( LxWxH=152x107x31 mm ) , easy installation
· Provide splice protection of fiber cable and pigtail
· Made of engineer plastic, it is of nice shape
· Suitable for SC,FC or ST Adaptor
· No need screws, it is easy to close and openze, easy to place, especially suitable for field construction.

Specifications

Application	3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter	125μm ( 652 & 657 )
Number of splice trays	6
Maximum Cable Diameter (mm)	12
Max capacity	12
End-use temperature	-40～+85℃
Adapter	SC/FC/ST simplex
output	3
Inner Packing Dimensions	15511239 mm
Dimensions	15210731 mm
Installation Size	76mm

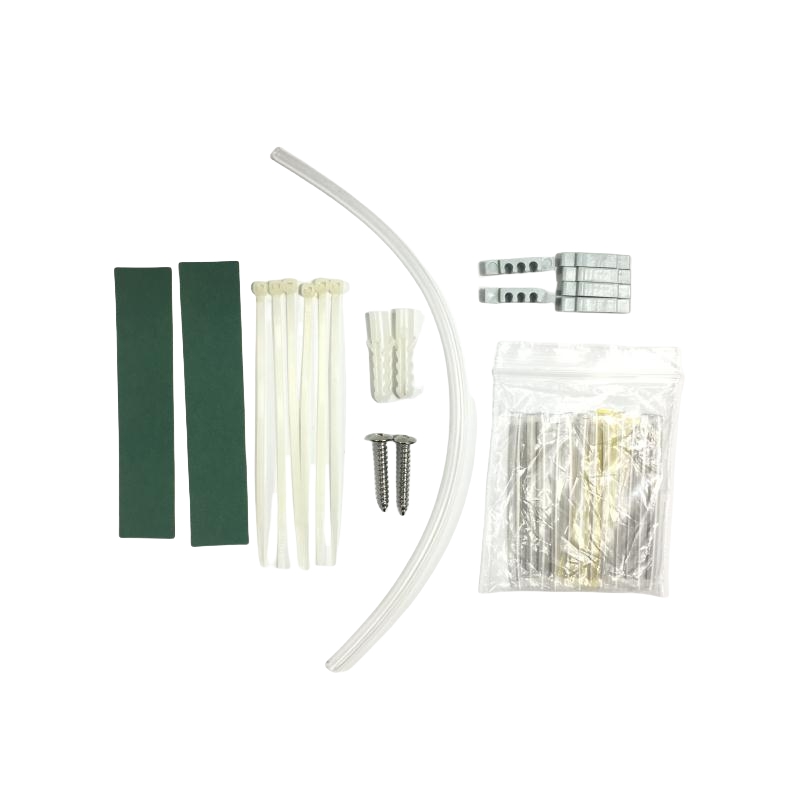

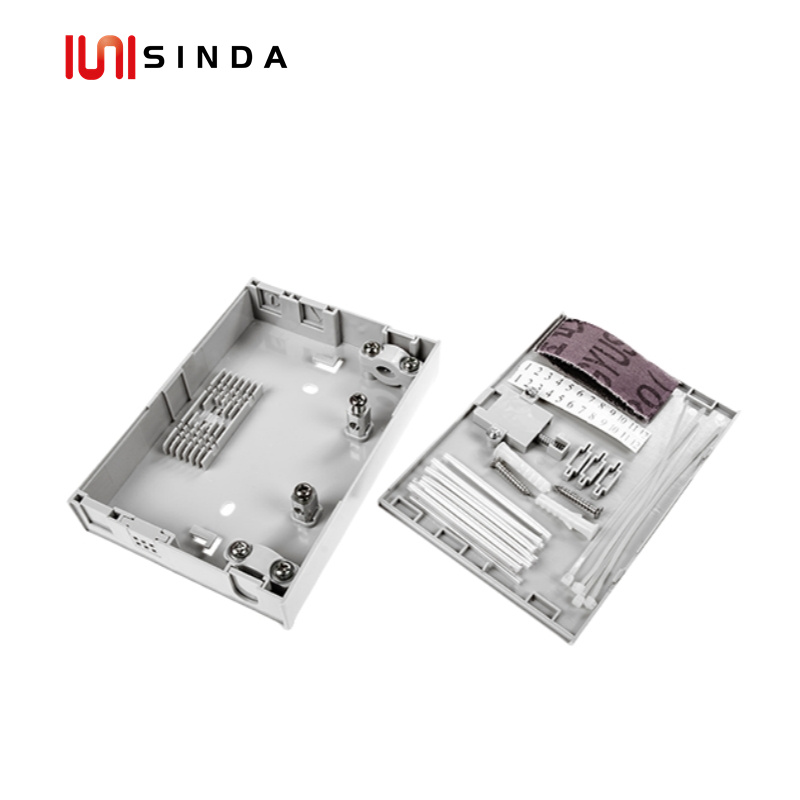

Accessories

Quality Certification
