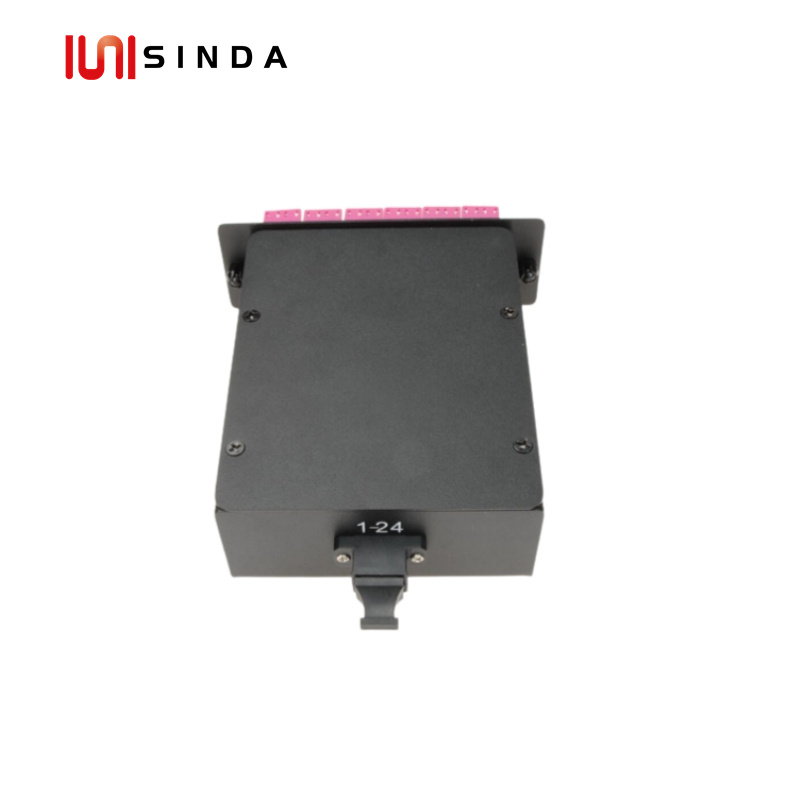

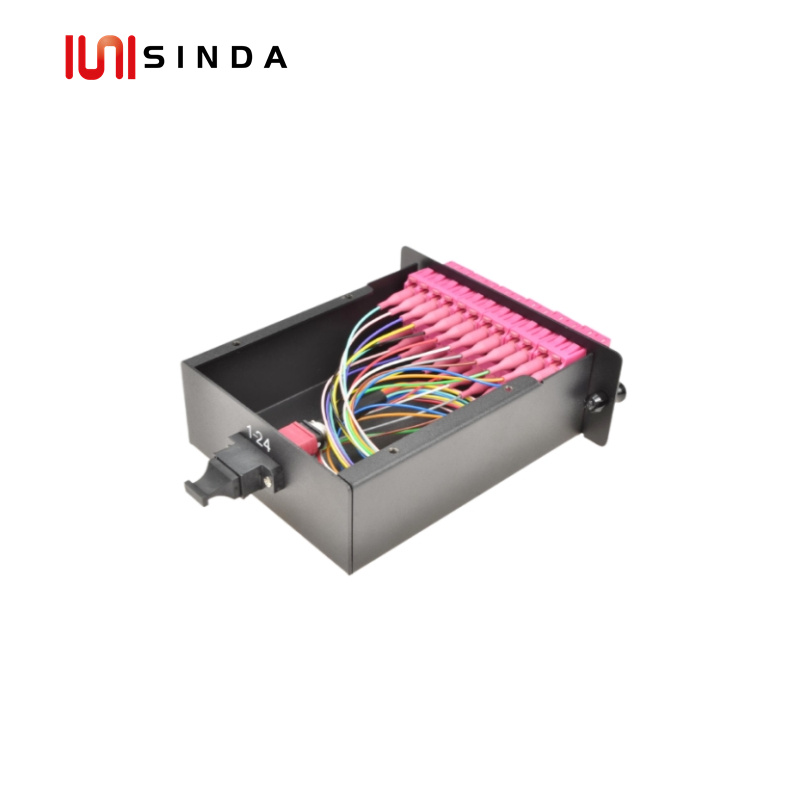

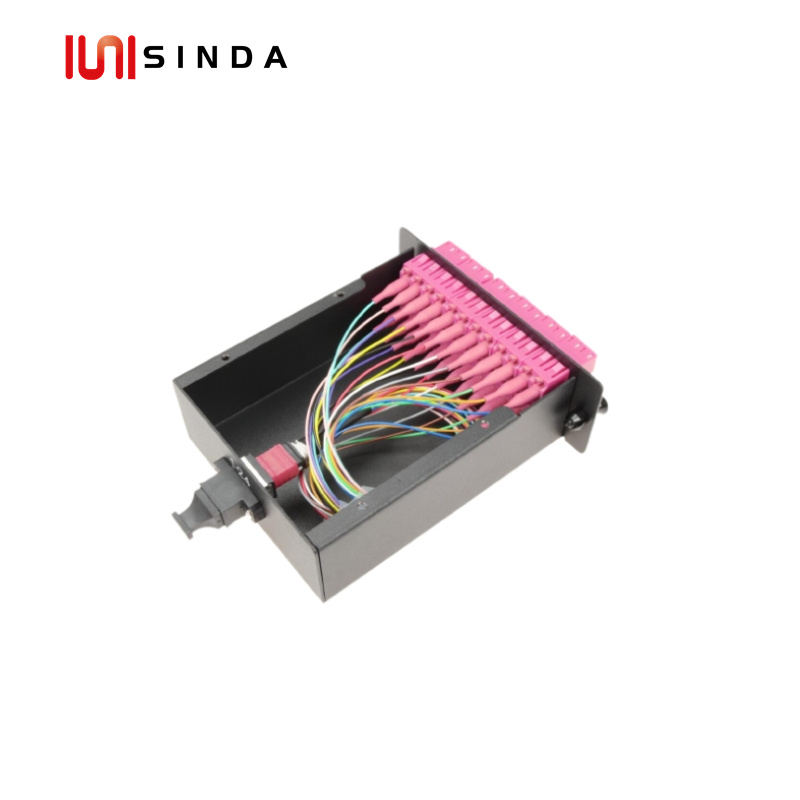

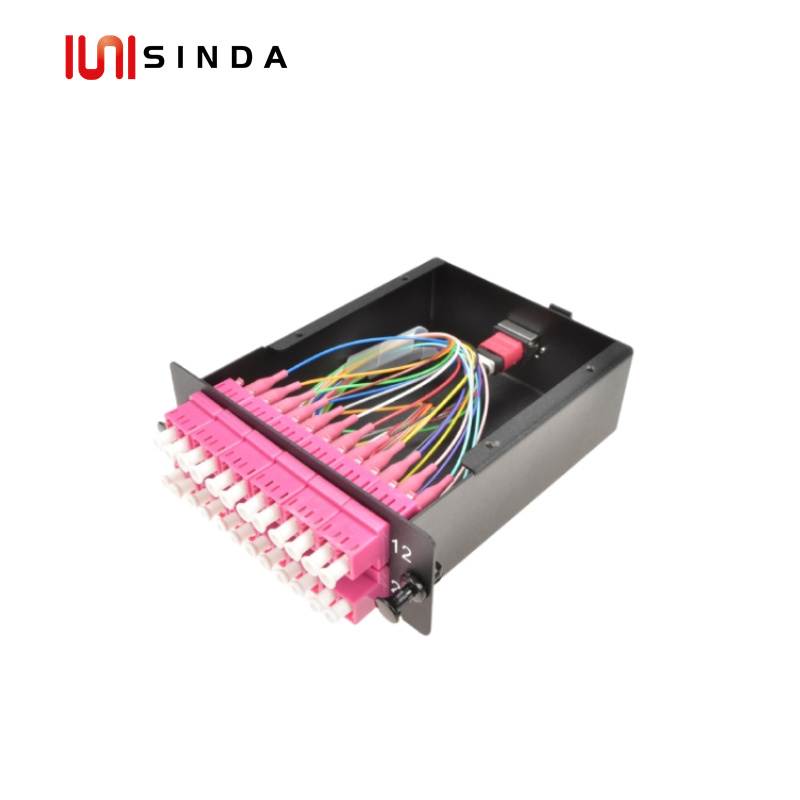

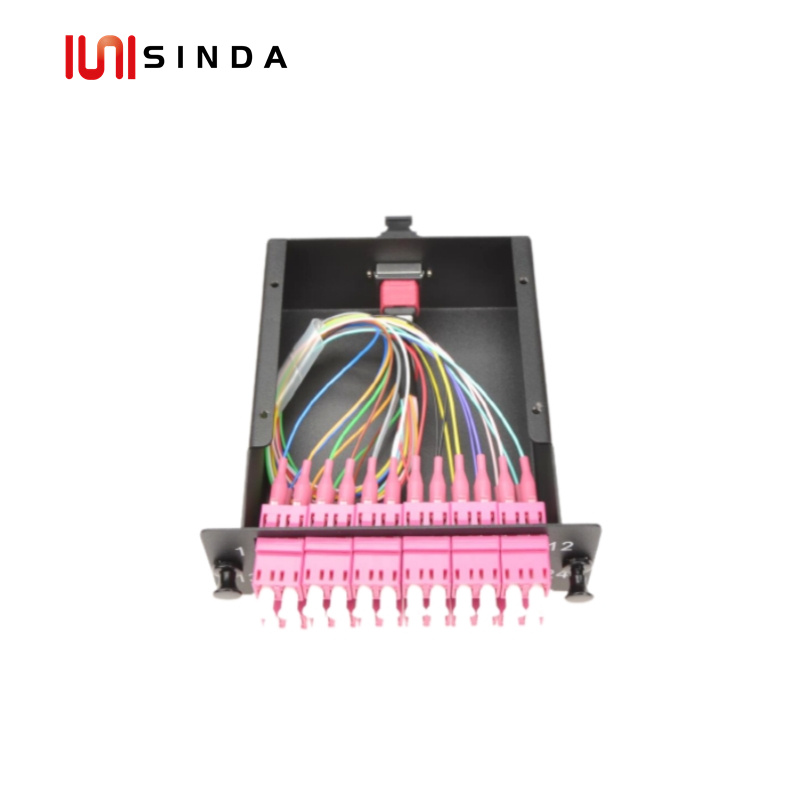

24 Core MPO/MTP Cassette Fully Loaded for Fiber Optic Patch Panel

24 Core MPO/MTP Cassette Fully Loaded for Fiber Optic Patch Panel

24 Core MPO/MTP Cassette Fully Loaded for Fiber Optic Patch Panel, 24 Core MPO/MTP fiber distribution frame module box can be installed in 1U to 4U 19′ multi-slot chassis. They are available in multimode and single-mode cables.

Chat Now

Description

24 Core Fully Loaded MPO/MTP Cassette

24 Core Fully Loaded MPO/MTP Cassette provides safe transition between MPO/MTP and LC or SC discrete connectors. They provide a fast, reliable, high-performance, and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module.

Feature

The front panel is equipped with LC or SC adapter, and rear panel assembles the MPO/MTP adapter;
Adopts high-quality engineering plastics and aluminum alloy materials, with electrostatic plastic-sprayed on the surface, making it beautiful in outlook and convenient to use;
MPO face plate can be upgraded easily;
There are marks in the front of each port, and can be easily identified;
Quick and easy to install, flexible in configuration, and easy to manage.

Specifications

Product Name	24 Core Fully Loaded MPO/MTP Cassette
Adapter Type	Front Adapter Type LC, SC
Adapter Type	Backend Adapter Type MPO/MTP
Fiber Type	OS1/OS2, OM1, OM2, OM3,OM4
Material	Colled Rolled Steel
Operating Temperature	-20~+60 ºC
Storage Temperature	-40~+70 ºC
Fiber Cable Type	250um Ribbon Fiber, Ribbon Cable, Bundle Fiber Optic Cable
MPO/MTP Insertion Loss	SM: ≤ 0.75dB (standard),
	≤0.35dB (Low Loss);
	MM:≤ 0.50dB (standard),
	≤0.35dB (Low Loss)
LC/SC Insertion Loss	SM:≤ 0.2dB;
LC/SC Insertion Loss	MM:≤ 0.2dB
MPO/MTP Return Loss	SM:≥60dB;
MPO/MTP Return Loss	MM:≥35dB
LC/SC Return Loss	SM:≥60dB;
LC/SC Return Loss	MM:≥35dB;

Application

Data Centre Infrastructure；
High-Density Fiber Management；
Telecommunications networks；
Broadband/CATV networks；
LAN/WAN premises.

Quality Certification

Hot Tags : 24 Core MPO/MTP Cassette 24C MPO/MTP Cassette Fiber Cassette 12Core MPO/MTP Cassette Fiber MPO/MTP Cassette MPO/MTP Cassette for fiber
