Flat Twin Duplex Indoor Cable（GJFJBV）

Flat twin duplex indoor cable factory price

Flat Twin Duplex Indoor Cable（GJFJBV）

Flat Twin Duplex Indoor Cable（GJFJBV）,Flat Twin Duplex Indoor Cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.

Chat Now

Description

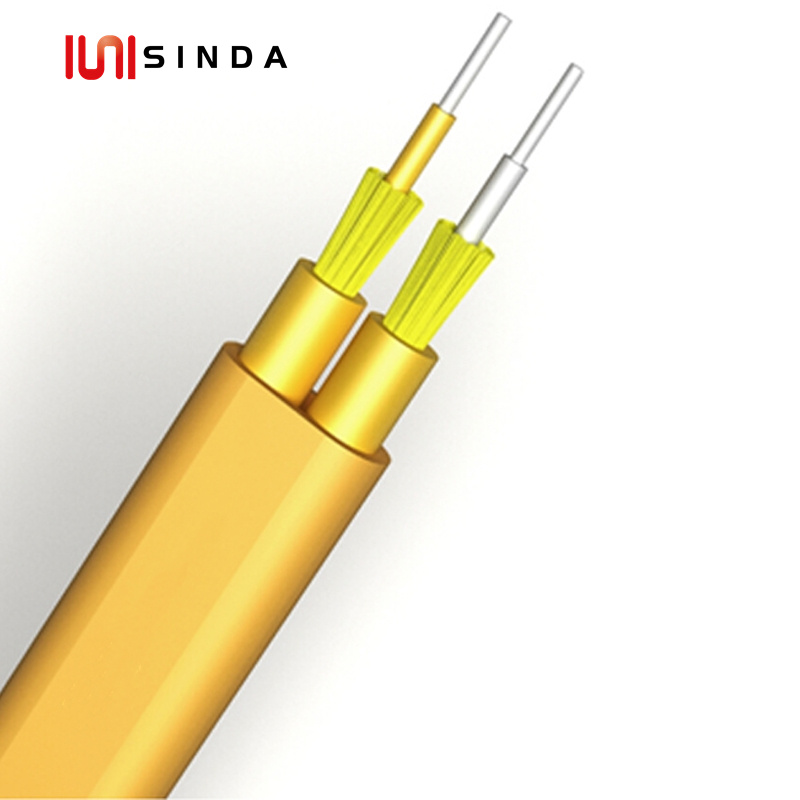

Flat Twin Duplex Indoor Cable（GJFJBV）

The tight buffer fiber wrapped with a layer of aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.
Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath .

Features

Two single-fiber as basic unit.flat twin configuration;
Single-cable with 0.6 tight buffer.Kevlar yarn applied;
Flexible or out sheath independent strength member;
Excellent mechanical and environmental performance.

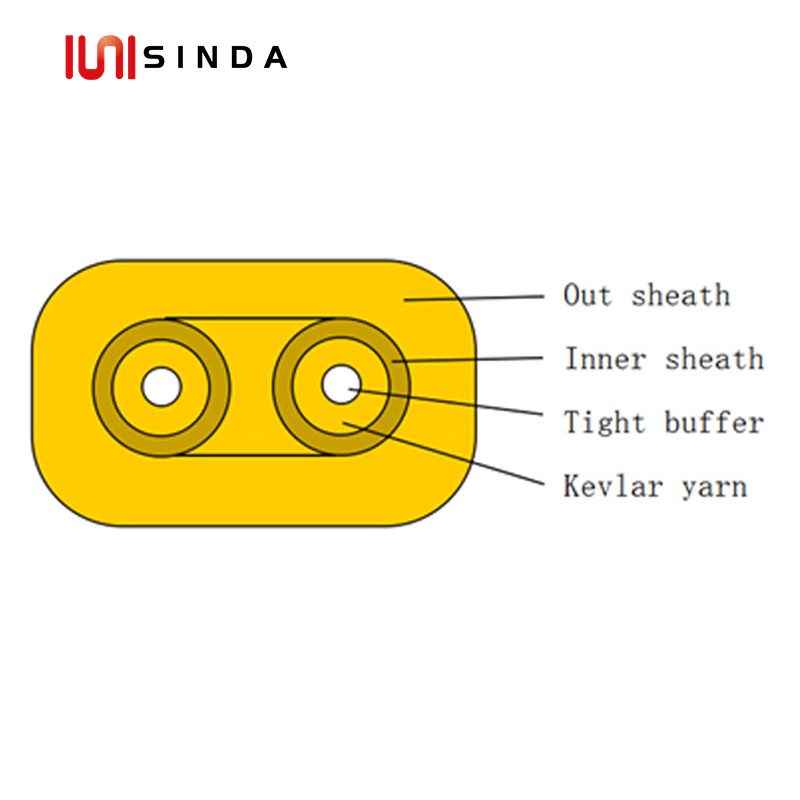

Cable construction details

Technical Parameters:
Out Diameter(MM)	3.0×5.0			Weight(KG)	56
	3.2×5.6				68
	5.0×8.0				87
Storage temperature（℃）			40
Min Bending Radius(mm)		Long term	10D
Min Bending		Short term	20D
Radius(mm)
Min allowable		Long term	300
Tensile Strength(N)
Min allowable		Short term	800
Tensile Strength(N)
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Standard Colour Identification
No.	1	2
Color	Yellow	White

Fiber characteristic

Fiber style		Unit	SM	SM	MM	MM	MM
			G652	G652D	50/125	62.5/125	OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302,	----	----	≧ 1295,
				≤1322			≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.12	≤0.08	----	----	----

Fibre cutoff wavelength λc		nm	≧ 1180,	≧1180,	----	----	----
			≤1330	≤1330
Cable sutoff		nm	≤1260	≤1260	----	----	----
wavelength λcc
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical			----	----	0.200+/	0.275+/-0.	0.200+/-0
Aperture(NA)					-0.015	15	0.015
Step(mean of bidirectional		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
measurement)
Irregularities over fiber		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
length and point
Dicontinuity
Difference backscatter		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
coefficient
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
concentrically error
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

Applications

Adopted to indoor distribution;
As pigtail of communication equipment;
Suitable for communication equipment;
Can be installed conveniently.

Quality Certification
