Mini Bare Fiber Distribution Fiber Optic Cable

Mini Bare Fiber Distribution Fiber Optic Cable

Mini Bare Fiber Distribution Fiber Optic Cable,Break-out indoor cable use simplex cableas subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the core. The cable is completed with a PVC or LSZH ( Low smoke, Zero halogen, Flame-retardant ) jacket.

Chat Now

Description

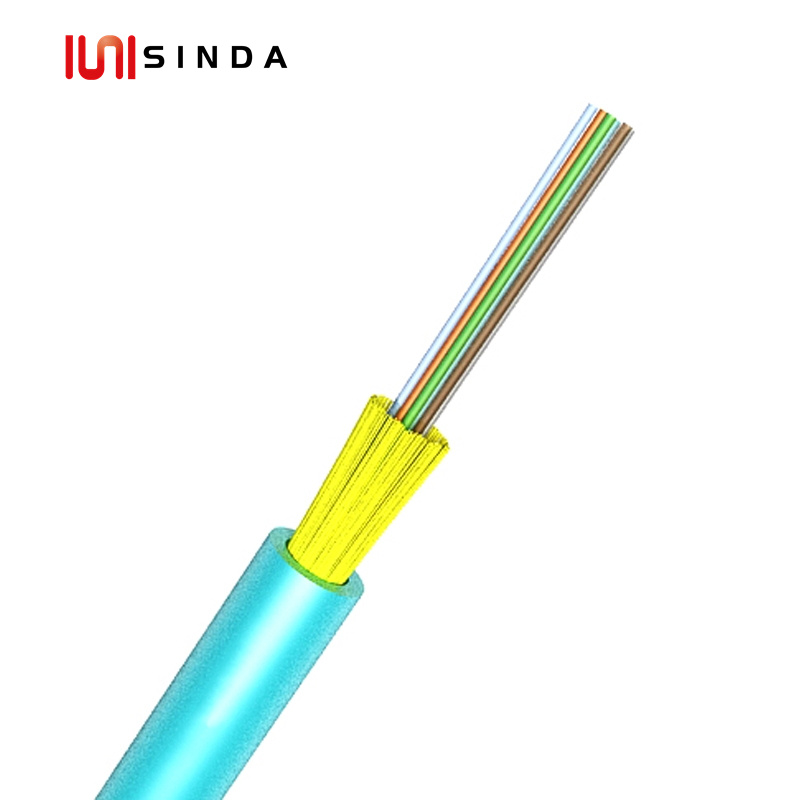

Mini Bare Fiber Distribution Fiber Optic Cable

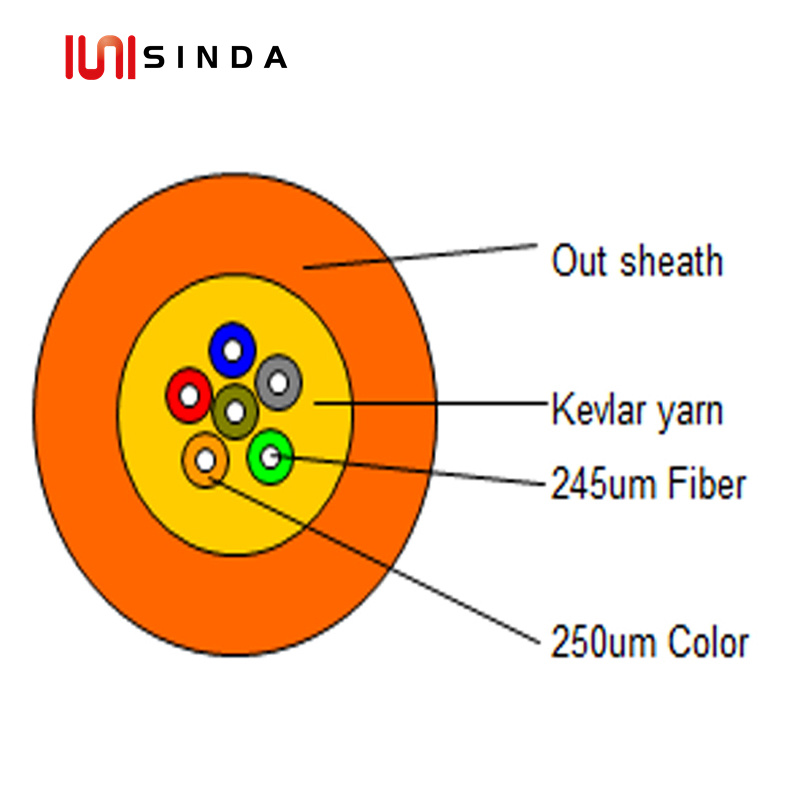

Break-out indoor cable use simplex cableas subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the core. The cable is completed with a PVC or LSZH ( Low smoke, Zero halogen, Flame-retardant ) jacket.

Features

Indoor distribution, suitable for make patch cord and pigtail;
Multi cable with independent strength member;
Non-metal central strenght member;
High strength kevlar yarn member.

Cable Mechanical characteristic

Items		Cable diameter	Weight
24 cores		10	54.00kg/km
48 cores		10	78.00kg/km
72 cores		11.5	90.00kg/km
96 cores		12.5	115.00kg/km
144 cores		14.5	135.00kg/km
Storage temperature（℃）		40
Min Bending Radius(mm)	Long term	10D
Min Bending	Short term	20D
Radius(mm)
Min allowable	Long term	1000
Tensile Strength(N)
Min allowable	Short term	2000
Tensile Strength(N)
Crush Load (N/100mm)	Long term	1000
Crush Load (N/100mm)	short term	2000

Fiber characteristic

Fiber style		Unit	SM	SM	MM	MM	MM
			G652	G652D	50/125	62.5/125	OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302,	----	----	≧ 1295,
				≤1322			≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr		≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*km)	≤0.12	≤0.08	----	----	----

Fibre cutoff wavelength λc		nm	≧ 1180,	≧1180,	----	----	----
			≤1330	≤1330
Cable sutoff		nm	≤1260	≤1260	----	----	----
wavelength λcc
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical		----	----	0.200+/	0.275+/-0.	0.200+/-0
Aperture(NA)				-0.015	15	0.015
Step(mean of bidirectional		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
measurement)
Irregularities over fiber		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
length and point

Applications

Used in indoor cabling, especially used as breakout cable;
As pigtail of communication equipment;
Suitable for communication equipment served;
All-purpose mini indoor cable
Can use MPO, MTP connector.

Quality Certification
