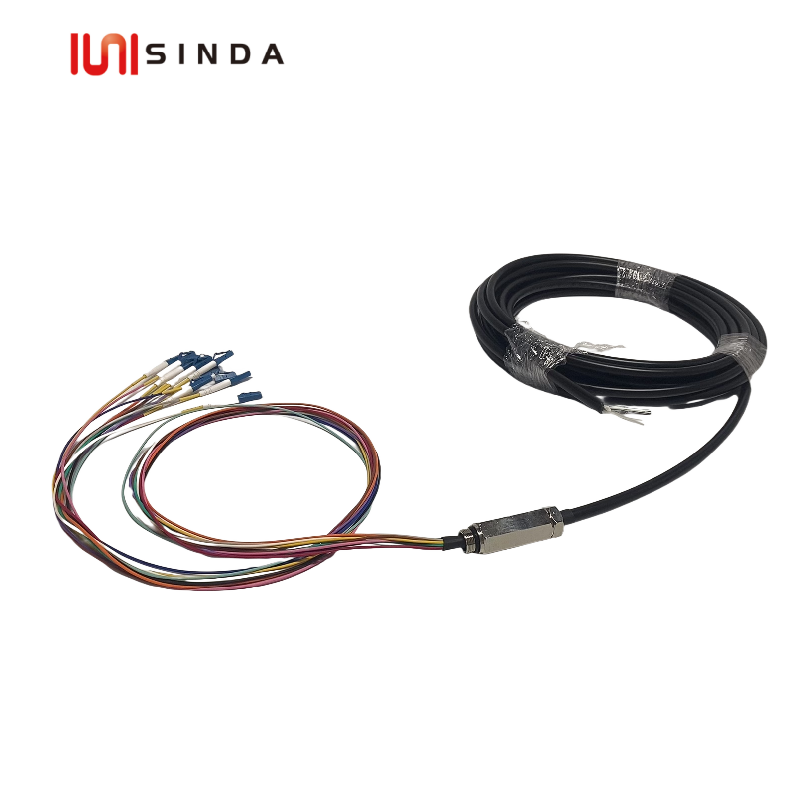

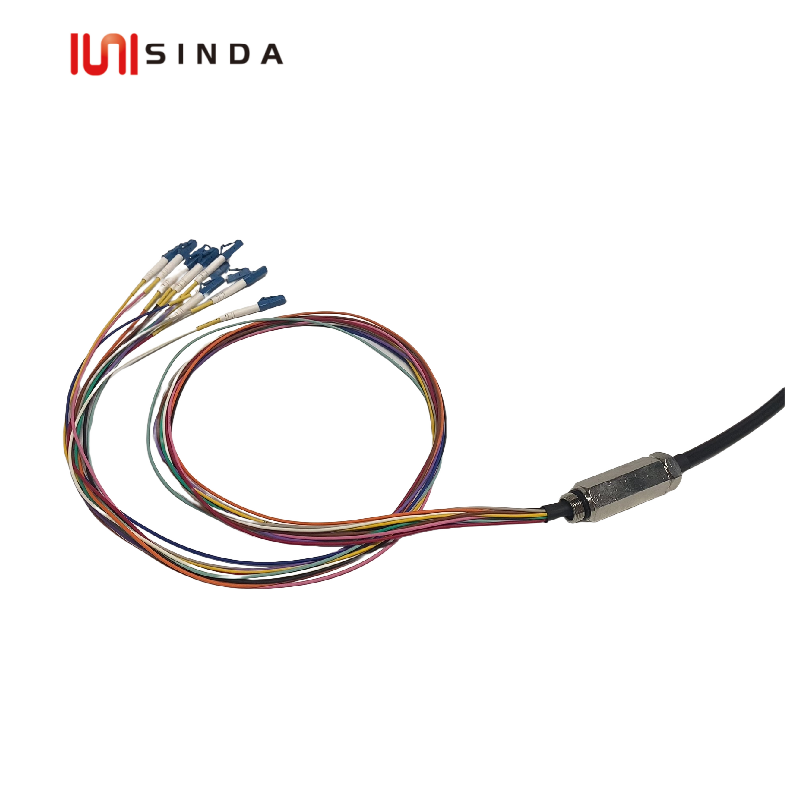

Pre-con Service Cable All dielectric 12 fibers G652-D SM cable

Pre-con Service Cable. All dielectric 12 fibers G652-D SM cable, MDPE black color. Hermetic nickel plated copper couppler.

Break-out at 1 end: TIA 598 Color code 1.6mm OD 1meter long. LC/UPC connectors. Total length 10 meters or customized.

Chat Now

Description

Pre-con Service Cable. All dielectric 12 fibers G652-D SM cable, MDPE black color. Hermetic nickel plated copper couppler.

Break-out at 1 end: TIA 598 Color code 1.6mm OD 1meter long. LC/UPC connectors. Total length 10 meters or customized.

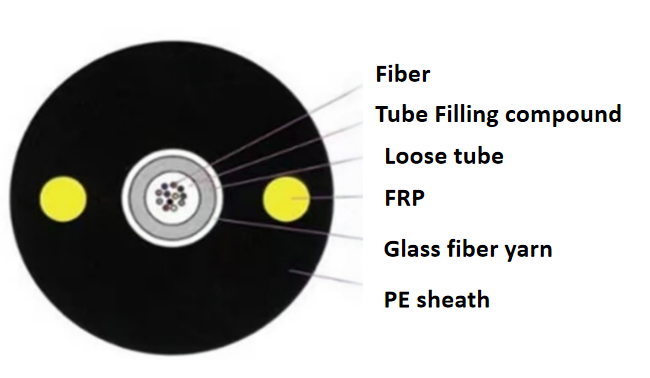

Cable structure

Feature

Designed and Complies with Telcordia Sepcifications GR 326 core.

UL Approved(Complies to UL 2410)

Latest Fiber options available SM 652D,G655,G656,G657A, MM OM1/OM2/OM3/OM4/OM5

Available in different connector options-SC/FC/LC/ST/MPO/MTP etc.

Available in different polishing options-PC/UPC/APC.

Jacket Type: MDPE black color

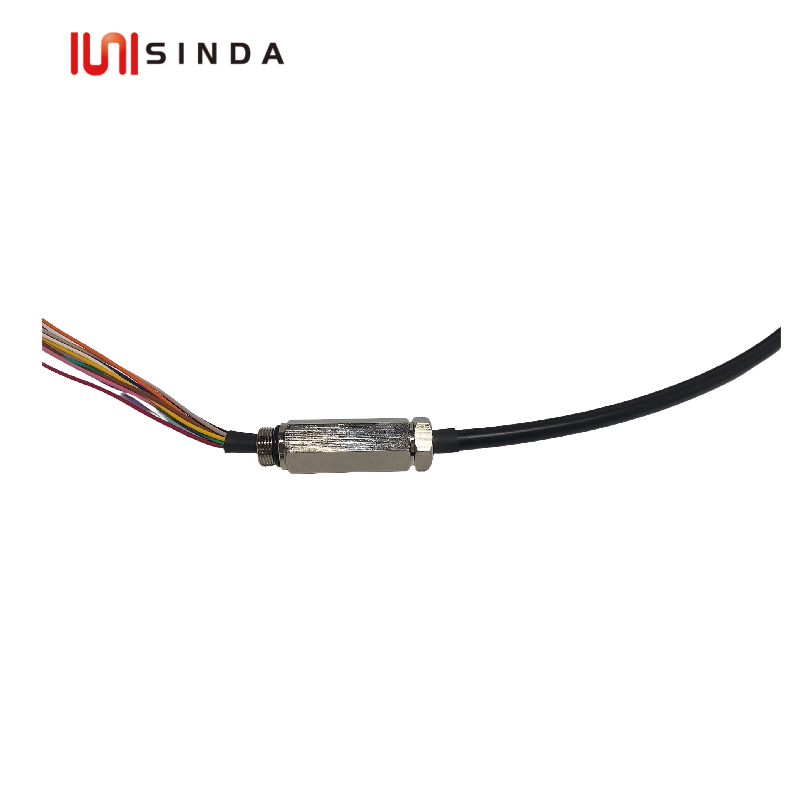

Couppler type: Hermetic Aluminum or Hermetic nickel plated copper couppler

Break-out at 1 end: TIA 598 Color code 1.6mm OD 1meter long.

Operating Temperature:-20oC to +70oC

Minimum Insertion Life cycles: 500 Times

Specification

Type Fiber	SM(G657A1/ G657A2) ; MM(OM1/OM2/OM3/OM4)
Fiber Count	12F
Cable Diameter	9.4mm - 10.1mm
Jacket Color	Black
Outer Jacket Material	MDPE
Connector	LC,SC,ST,FC,etc..
Insertion Loss	SM/UPC≤0.3db; MM/UPC≤0.3db
Return Loss	SM/APC≥60dB; SM/UPC≥55db; MM/UPC≥35db
Cable Length	1~150m or Customized
Branch Length	1m or Customized
Cable Type	Armored or Un-armored
Mechanical Life	500 mating cycles
Working Temperature	-20°C~+70°C
Storage Temperature	-20°C~+70°C
Tensile Data	Tensile between the junction and fiber cable≥100N

Application

Remote or Data Center Applications;

40G/100G Connectivity Applications;

LAN/SAN;

FTTH Access Network;

Telecommunications Networks;

CATV Networks.

Hot Tags : Pre-con Service Cable All dielectric 12 fibers G652-D SM cable MDPE black fiber patch cable Pre-con fiber optic cable Pre-con fiber patch cords Pre-con LC fiber patch cords
