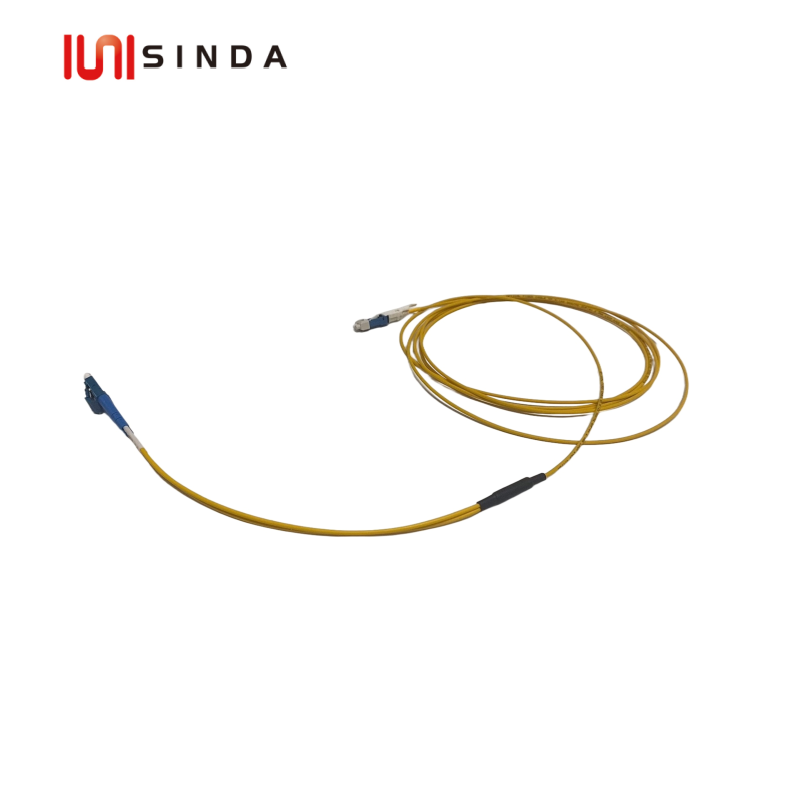

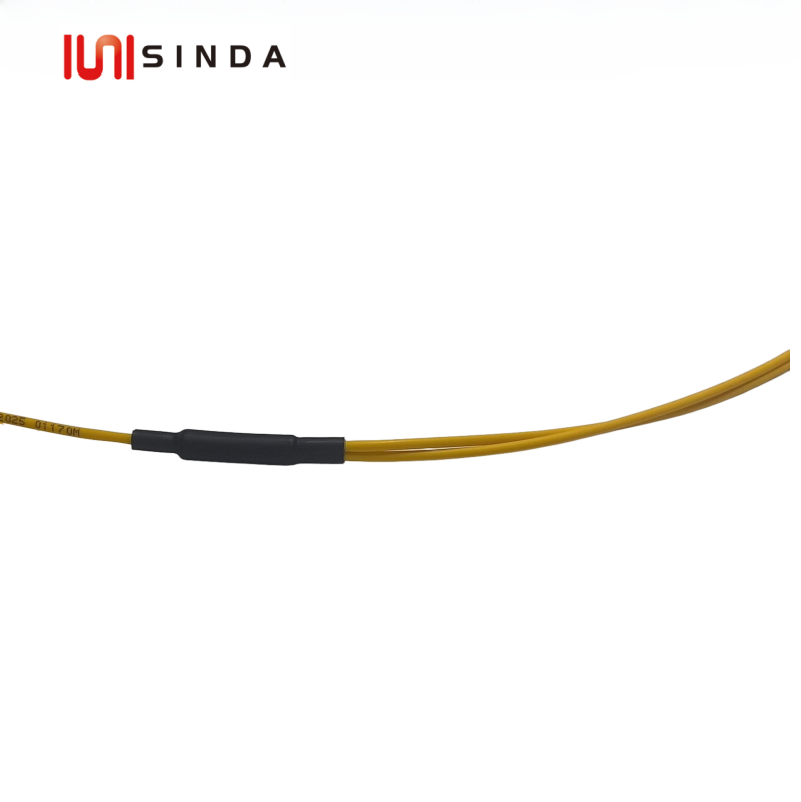

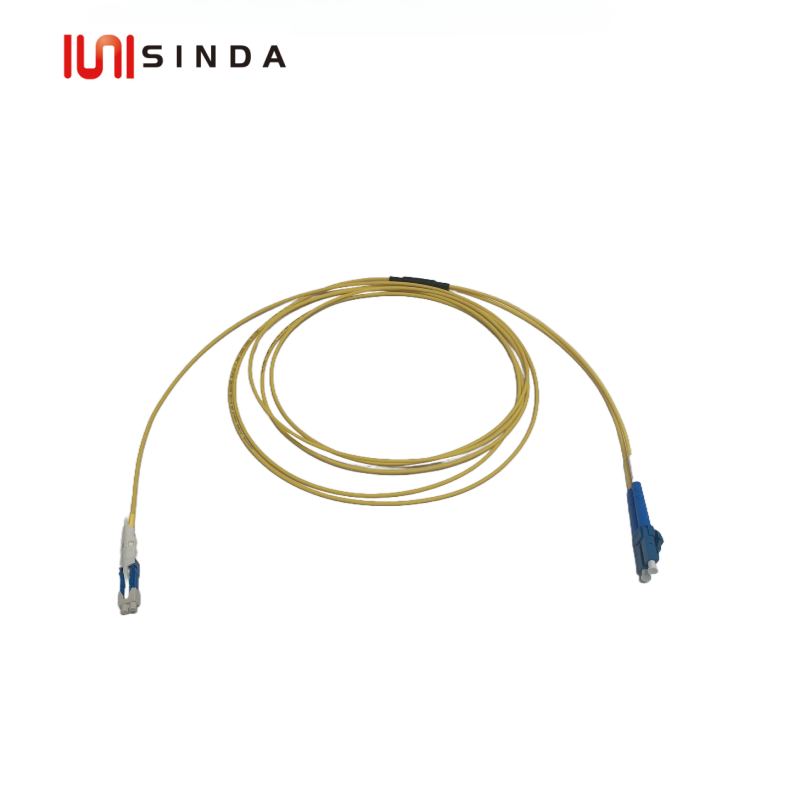

CS to LC 3M Yellow OS2 Duplex LSZH SMF Fiber Patch Cable

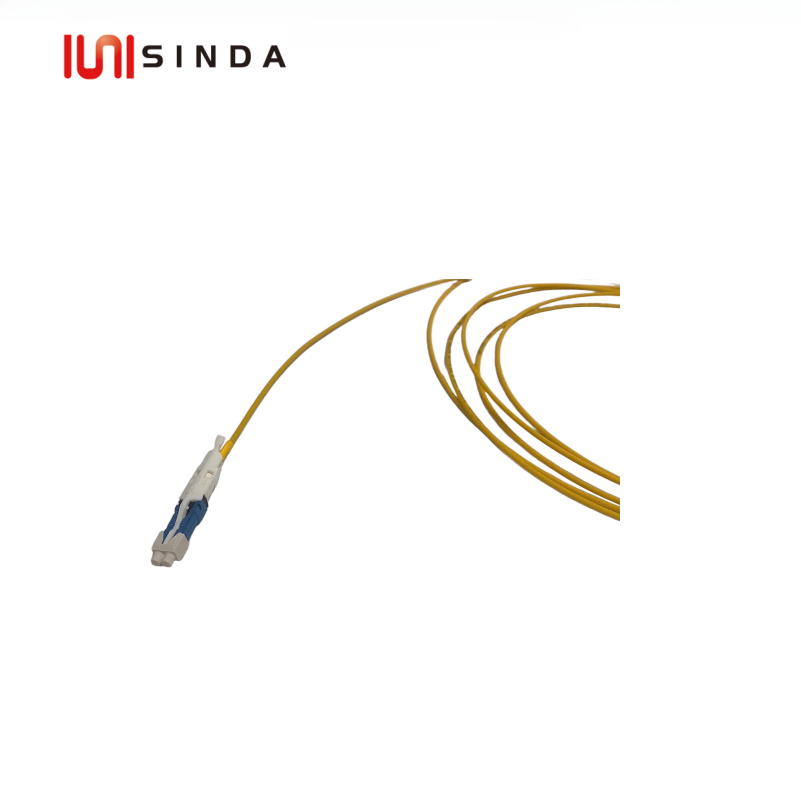

The CS Connector is an evolution in optical connectivity where CS connectors feature a 40% size reduction when compared to LC duplex connectors at the same time delivering increased performance. Connectors have two cylindrical, spring-loaded 1.25mm ferrules similar to LC connectors, within a single housing, but the CS connector’s two ferrules are pitched at 3.8mm apart (standard LC duplex ferrules are pitched 6.25mm apart), which is the minimum possible spacing to meet the TOSA and ROSA optics requirement. Edge to edge size for CS connectors is 7.85mm, while for standard LC duplex connectors it is 13mm. The CS Connectors are standardized by the CS Consortium.

Futures:

CS connector Senko patch cables are CE/RoHS certified and are compliant with product safety standards. CS to LC cable is fully compliant to the following product standards: Telcordia GR 326 CORE, IEC 613003-35-2015, IEC 61755-3-31 2015, and following fiber and cable standards: ISO/IEC 11801-1:2017, IEC60793-2-50 Single mode optical fiber cable transmission performance requirements and single mode optical fiber bending loss requirements and following data center cabling standards: ISO/IEC 11801-5, GB 50174, ISO/IEC 24764. IEC 61034 low smoke no halogen (LSZH), in accordance with IEC 60332-1, IEC60332-3C flame retardant performance. Standard of Indoor optical cable as defined by Telcordia GR 409 Core Issue 2, YD/T 128.3 2009.

Specifications:
